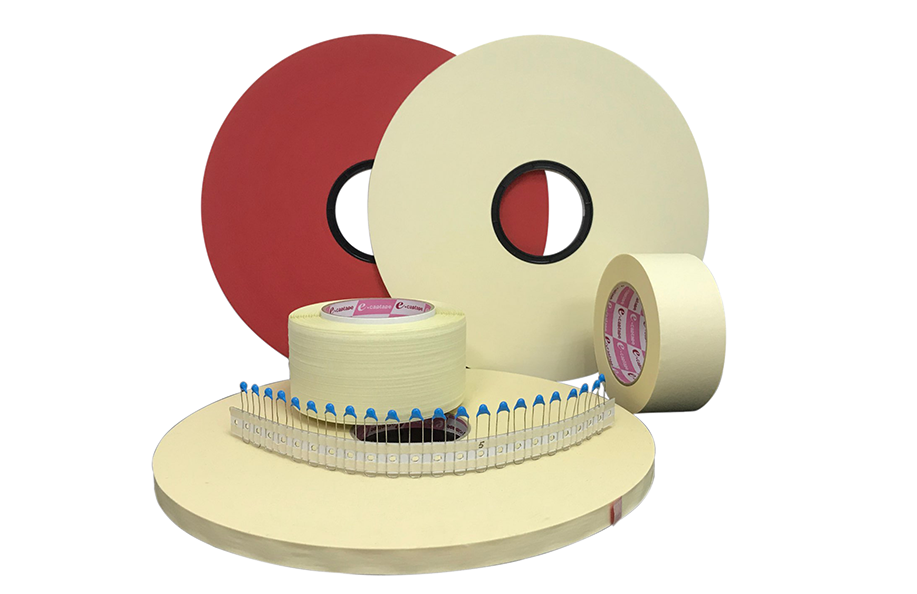

Paper packaging materials for traditional plug-in electronic components are divided into hot-melt type and self-adhesive type. CAPTAIN's products have good adhesion, good weather resistance and no glue residue, etc., and can provide products of different widths and lengths in response to customer needs.
-
CARRIER TAPE
Item No. Backing Adhesive Thickness Tensile Elongation Extract Power Adhesion to stainless Adhesion to backing #D52 Crepe paper Thermal acrylic 0.195±0.030mm >3.0kg/10mm >7.0% >7.0/13mm - - #Q01 Crepe paper Thermal acrylic 0.150±0.030mm >3.0kg/10mm >7.0% >7.0/13mm - - #8008 Crepe paper Thermal acrylic 0.155±0.010mm >3.0kg/10mm >7.0% >7.0/13mm - - #8009 Crepe paper Thermal acrylic 0.205±0.030mm >3.0kg/10mm >7.0% >7.0/13mm - - #D582 Flat paper(red/white) PSA rubber 0.150±0.020mm
/- 0.010>4.0kg/10mm <12% >0.35kg/6mm >300g/10mm <400g/10mm #D601 Flat paper(red/white) PSA rubber 0.140±0.020mm
/- 0.010>4.0kg/10mm <12% >0.35kg/6mm >300g/10mm <400g/10mm #Q11 Crepe paper PSA rubber 0.120±0.020mm >2.0kg/10mm <23% >0.35kg/6mm >300g/10mm <400g/10mm
