CAPTAIN Company is a professional manufacturer of cover tape. It is matched with the carrier tape to secure and protect various surface-mounted components. It has antistatic effect and conforms to international standards. According to the packaging needs, it is divided into heat-sealing type and PSA type, and can provide products of different widths and lengths according to customer needs.

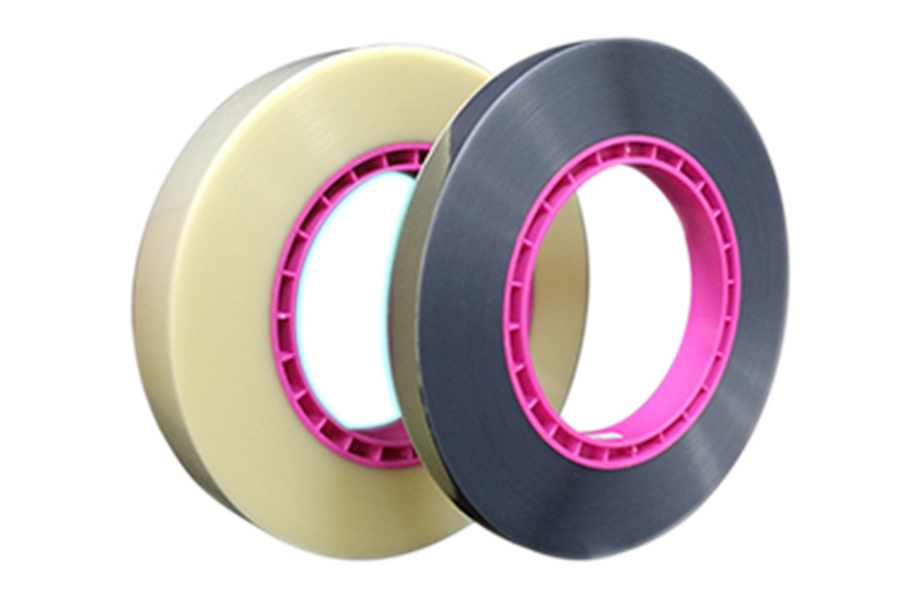

  1. COVER TAPE
    Item No. Type Thickness Surface Resistance Peeling range Tensile Elongation Haze Luminous Transmittance
    #927AR Heat-seal 0.067±0.004mm <1012Ω/sqm 20g ≥3100 psi ≥55% 45±5% 85±5%
    #K608 Heat-seal 0.058±0.005mm <1012Ω/sqm 20g ≥3800 psi ≥55% 30±5% 85±5%
    #H67AR Heat-seal 0.055±0.003mm <1012Ω/sqm 25g ≥3800 psi ≥55% 20±5% 85±5%
    #K98AR Heat-seal 0.045±0.003mm <1012Ω/sqm 25g ≥4700 psi ≥50% 20±5% 85±5%
    #D708 Heat-seal 0.048±0.005mm <1012Ω/sqm 25g ≥4400 psi ≥55% 25±5% 85±5%
    #2705RB PSA 0.045±0.005mm 1.0*104≤SR
    (Ω)<1.0*108    		 - ≥6300 psi ≥80% ≤20% ≥50%
    #2705RC PSA 0.045±0.005mm 1.0*104≤SR
    (Ω)<1.0*1011    		 - ≥6300 psi ≥80% ≤20% ≥80%
